Web Service BusinessActions
getBusinessActions-Operation
Business Actions are things that can happen inside the application. They enhance the vtiger CRM link system and they can affect any part of the application
GET URL Format :
http://144.91.100.102:8880/corebos/webservice.php?operation=getBusinessActions&sessionName={{sessionName}}&view=ListView&module=Accounts&id=accounts_id&linktype=LISTVIEWBASICQuery parameters
| Key | Value | Description |
|---|---|---|
| operation | getBusinessActions | The operation you need to get the businessAction |
| sessionName | {{sessionName}} | The value of a hashing value that you need to connect to coreBOS. |
| view | ListView | The view that you want to show the result you get from the businessAction. The view can be : listview,detailsview, related module |
| module | Accounts | The module that you want to trigger the businessAction |
| id | e.g. 74 | The id of an account contact |
| linktype | LISTVIEWBASIC | The linktype you will use. You can use one of these linktypes: LISTVIEWBASIC, DETAILVIEWBASIC, HEADERSCRIPT, DETAILVIEWWIDGET |
SessionName
var hash = CryptoJS.MD5(token+accesskey).toString();Response
{
"success": true,
"result": {
"LISTVIEWBASIC": [
{
"tabid": "6",
"linkid": "43076",
"linktype": "LISTVIEWBASIC",
"linklabel": "Send SMS",
"linkurl": "SMSNotifierCommon.displaySelectWizard(this, 'Accounts');",
"linkicon": "",
"sequence": "0",
"status": false,
"handler_path": "",
"handler_class": "",
"handler": "",
"onlyonmymodule": "0"
},
{
"tabid": "6",
"linkid": "244610",
"linktype": "LISTVIEWBASIC",
"linklabel": "Generate Document",
"linkurl": "javascript:showgendoctemplates('Accounts');",
"linkicon": "",
"sequence": "0",
"status": false,
"handler_path": "",
"handler_class": "",
"handler": "",
"onlyonmymodule": "1"
},
{
"tabid": "6",
"linkid": "43152",
"linktype": "LISTVIEWBASIC",
"linklabel": "LBL_SEND_MAIL_BUTTON",
"linkurl": "return eMail('Accounts',this);",
"linkicon": "",
"sequence": "0",
"status": false,
"handler_path": "",
"handler_class": "",
"handler": "",
"onlyonmymodule": "0"
},
{
"tabid": "6",
"linkid": "43155",
"linktype": "LISTVIEWBASIC",
"linklabel": "LBL_MAILER_EXPORT",
"linkurl": "return mailer_export();",
"linkicon": "",
"sequence": "0",
"status": false,
"handler_path": "",
"handler_class": "",
"handler": "",
"onlyonmymodule": "0"
}
]
}
}getBusinessAction - coreBOS Webservice Development
<?php
//parameters
$params = "sessionName=$cbSessionID";
$params.= "&operation=getBusinessActions";
$params.= "&view=ListView";
$params.= "&module=Accounts";
$params.= "&id=74";
$params.= "&linktype=LISTVIEWBASIC";
//Retrieve must be GET Request.
$response = $httpc->fetch_url("$cbURL?$params");
$dmsg.= debugmsg("Raw response (json)", $response);
//decode the json encode response from the server.
$jsonResponse = json_decode($response, true);
$dmsg.= debugmsg("Webservice response", $jsonResponse);
//operation was successful get the token from the response.
if ($jsonResponse['success']==false) {
$dmsg.= debugmsg('failed:'.$jsonResponse['error']['message']);
echo 'rule failed!';
} else {
echo $jsonResponse['result'];
}
?>Response:
{
"success":true,
"result":{
"LISTVIEWBASIC":[
{
"tabid":"6",
"linkid":"43076",
"linktype":"LISTVIEWBASIC",
"linklabel":"Send SMS",
"linkurl":"SMSNotifierCommon.displaySelectWizard(this, \\'Accounts\\');",
"linkicon":"",
"sequence":"0",
"status":false,
"handler_path":"",
"handler_class":"",
"handler":"",
"onlyonmymodule":"0"
},
{
"tabid":"6",
"linkid":"244610",
"linktype":"LISTVIEWBASIC",
"linklabel":"Generate Document",
"linkurl":"javascript:showgendoctemplates(\\'Accounts\\');",
"linkicon":"",
"sequence":"0",
"status":false,
"handler_path":"",
"handler_class":"",
"handler":"",
"onlyonmymodule":"1"
},
{
"tabid":"6",
"linkid":"43152",
"linktype":"LISTVIEWBASIC",
"linklabel":"LBL_SEND_MAIL_BUTTON",
"linkurl":"return eMail(\\'Accounts\\',this);",
"linkicon":"",
"sequence":"0",
"status":false,
"handler_path":"",
"handler_class":"",
"handler":"",
"onlyonmymodule":"0"
},
{
"tabid":"6",
"linkid":"43155",
"linktype":"LISTVIEWBASIC",
"linklabel":"LBL_MAILER_EXPORT",
"linkurl":"return mailer_export();",
"linkicon":"",
"sequence":"0",
"status":false,
"handler_path":"",
"handler_class":"",
"handler":"",
"onlyonmymodule":"0"
}
]
}
}executeBusinessAction-Operation
The operation that you need to execute a BusinessAction.
GET URL Format :
http://144.91.100.102:8880/corebos/webservice.php?operation=executeBusinessAction&sessionName={{sessionName}}&businessactionid=43063&context={"ID":"module_rest_idx74"}Query parameters
| Key | Value | Description |
|---|---|---|
| operation | executeBusinessAction | The operation you need to execute a businessAction |
| sessionName | {{sessionName}} | The value of a hashing value that you need to connect to coreBOS. |
| businessactionid | E.g 43063 | The id of the businessAction that you want to execute |
| context | {"ID":"module_rest_idx74"} | The id of the module and the record id that you want to execute the businessAction. |
Only block detail view widgets supported
SessionName
var hash = CryptoJS.MD5(token+accesskey).toString();Response
{
"success": true,
"result": "<input type=\"hidden\" id=\"comments_parentId\" value=\"74\" /> <table class=\"small\" border=\"0\" cellpadding=\"0\" cellspacing=\"0\" width=\"100%\"> <tr class=\"detailview_block_header comments_block_header\"> <td colspan=\"4\" class=\"dvInnerHeader\"> <div style=\"float: left; font-weight: bold;\"> <div style=\"float: left;\"> <a href=\"javascript:showHideStatus('tblModCommentsDetailViewBlockCommentWidget','aidModCommentsDetailViewBlockCommentWidget','$IMAGE_PATH');\"> <span class=\"exp_coll_block inactivate\"><img id=\"aidModCommentsDetailViewBlockCommentWidget\" src=\"themes//images/activate.gif\" style=\"border: 0px solid rgb(0, 0, 0);\" alt=\"Hide\" title=\"Hide\"></span></a> </span></a> </div><b> Comments Information</b></div> <span style=\"float: right;\"> <img src=\"themes//images/vtbusy.gif\" border=0 id=\"indicatorModCommentsDetailViewBlockCommentWidget\" style=\"display:none;\">\n\t\t\tShow : <select class=\"small\" onchange=\"ModCommentsCommon.reloadContentWithFiltering('DetailViewBlockCommentWidget', '74', this.value, 'tblModCommentsDetailViewBlockCommentWidget', 'indicatorModCommentsDetailViewBlockCommentWidget');\"> <option value=\"All\" selected>All</option> <option value=\"Last5\" >Last 5</option> <option value=\"Mine\" >Mine</option> </select> </span> </td> </tr> </table> <div id=\"tblModCommentsDetailViewBlockCommentWidget\" style=\"display: block;\"> <table class=\"small\" border=\"0\" cellpadding=\"0\" cellspacing=\"0\" width=\"100%\"> <tr style=\"height: 25px;\"> <td colspan=\"4\" align=\"left\" class=\"dvtCellInfo commentCell\"> <div id=\"contentwrap_ModCommentsDetailViewBlockCommentWidget\" style=\"overflow: auto; margin-bottom: 20px; width: 100%; word-break: break-all;\"> <div id=\"comment_id_113830\"> <div id=\"mouseArea_113830\" onmouseover=\"hndMouseOver(19,'113830');\" onmouseout=\"fnhide('crmspanid');\" > <div id=\"dtlview_113830\"> <div class=\"dataField\" id=\"comment_content_113830\" style=\"width: 99%; padding-top: 10px;\">\n\t\t\tçmmnote\n\t\t</div> <div class=\"dataLabel\" style=\"border-bottom: 1px dotted rgb(204, 204, 204); width: 99%; padding-bottom: 5px;color:darkred;\">\n\t\t\tAuthor: Joe Bordes on 2022-02-16 16:47:50\n\t\t</div> </div> <div id=\"editarea_113830\" style=\"display:none\"> <textarea id=\"txtbox_113830\" class=\"detailedViewTextBox\" onFocus=\"this.className='detailedViewTextBoxOn'\" onBlur=\"this.className='detailedViewTextBox'\" cols=\"90\" rows=\"8\">çmmnote</textarea> <br><a href=\"javascript:;\" class=\"detailview_ajaxbutton ajax_save_detailview\" onclick=\"ModCommentsCommon.editComment('113830');\">Save</a> </div> </div> </div> </div> </td> </tr> <tr style=\"height: 25px;\" class='noprint'> <td class=\"dvtCellLabel\" align=\"right\">\n\t\t\tAdd Comment\n\t\t</td> <td width=\"100%\" colspan=\"3\" class=\"dvtCellInfo\" align=\"left\"> <div id=\"editarea_ModCommentsDetailViewBlockCommentWidget\"> <textarea id=\"txtbox_ModCommentsDetailViewBlockCommentWidget\" class=\"detailedViewTextBox\" onFocus=\"this.className='detailedViewTextBoxOn'\" onBlur=\"this.className='detailedViewTextBox'\" cols=\"90\" rows=\"8\"></textarea> <br> <button class=\"slds-button slds-button_success\" title=\"Save\" onclick=\"ModCommentsCommon.addComment('ModCommentsDetailViewBlockCommentWidget', '74');\" style=\"color:#ffffff;\" > <svg class=\"slds-button__icon slds-button__icon_left\" aria-hidden=\"true\"> <use xlink:href=\"include/LD/assets/icons/utility-sprite/svg/symbols.svg#save\"></use> </svg>\n\t\t\t\t\t\tSave\n\t\t\t\t</button> <button class=\"slds-button slds-button_neutral\" title=\"Clear\" onclick=\"document.getElementById('txtbox_ModCommentsDetailViewBlockCommentWidget').value='';\" style=\"margin-left: 0;\" > <svg class=\"slds-button__icon slds-button__icon_left\" aria-hidden=\"true\"> <use xlink:href=\"include/LD/assets/icons/utility-sprite/svg/symbols.svg#redo\"></use> </svg>\n\t\t\t\t\t\tClear\n\t\t\t\t</button> </div> </td> </tr> </table> </div>"
}executeBusinessAction - coreBOS Webservice Development
The operation:
<?php
//parameters
$params = "sessionName=$cbSessionID";
$params.= "&operation=executeBusinessAction";
$params.= "&businessactionid=43063";
$params.= '&context={"ID":"module_rest_idx74"}';
//Retrieve must be GET Request.
$response = $httpc->fetch_url("$cbURL?$params");
$dmsg.= debugmsg("Raw response (json)", $response);
//decode the json encode response from the server.
$jsonResponse = json_decode($response, true);
$dmsg.= debugmsg("Webservice response", $jsonResponse);
//operation was successful get the token from the response.
if ($jsonResponse['success']==false) {
$dmsg.= debugmsg('failed:'.$jsonResponse['error']['message']);
echo 'rule failed!';
} else {
echo $jsonResponse['result'];
}

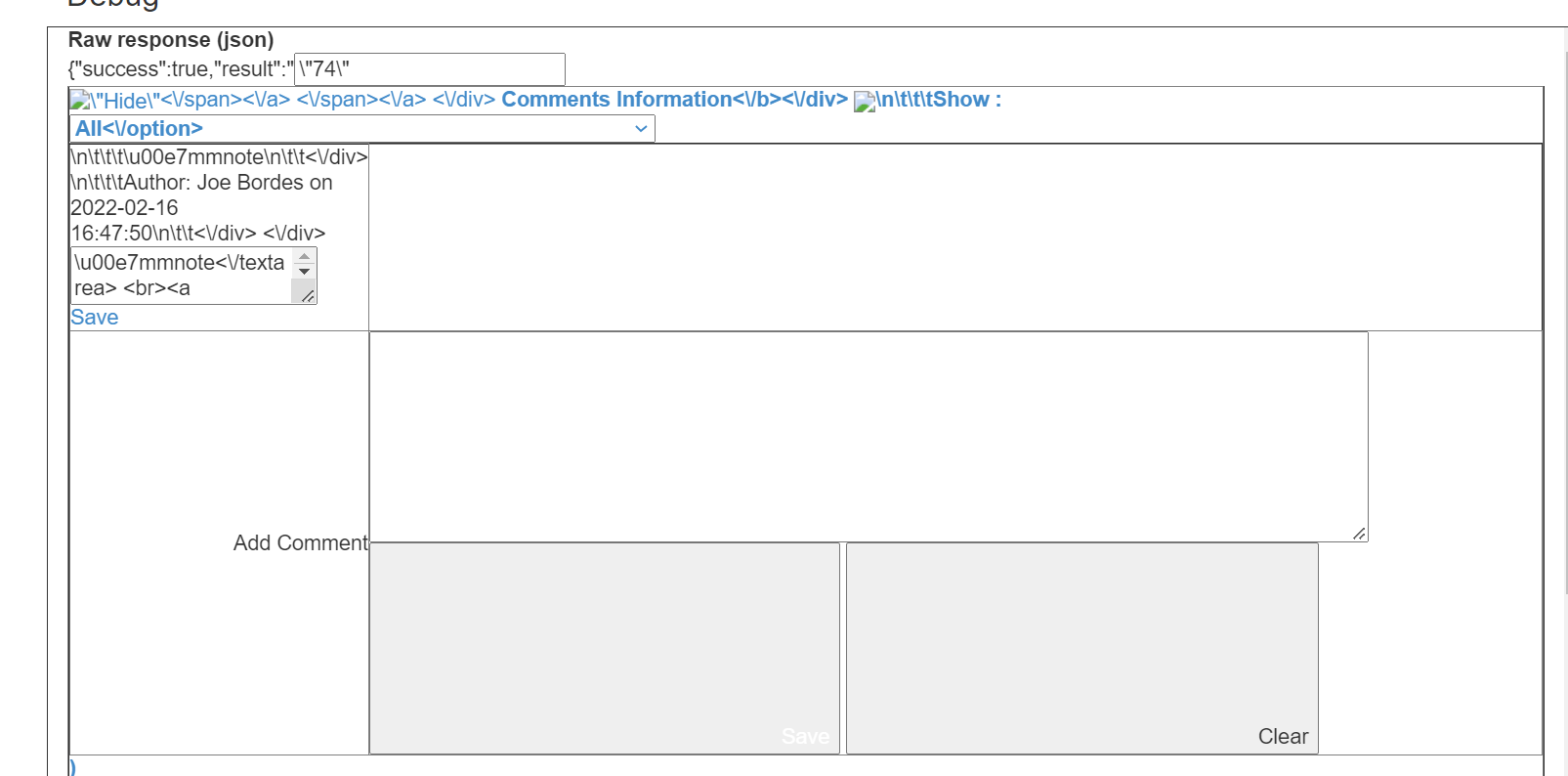

?>Output:
